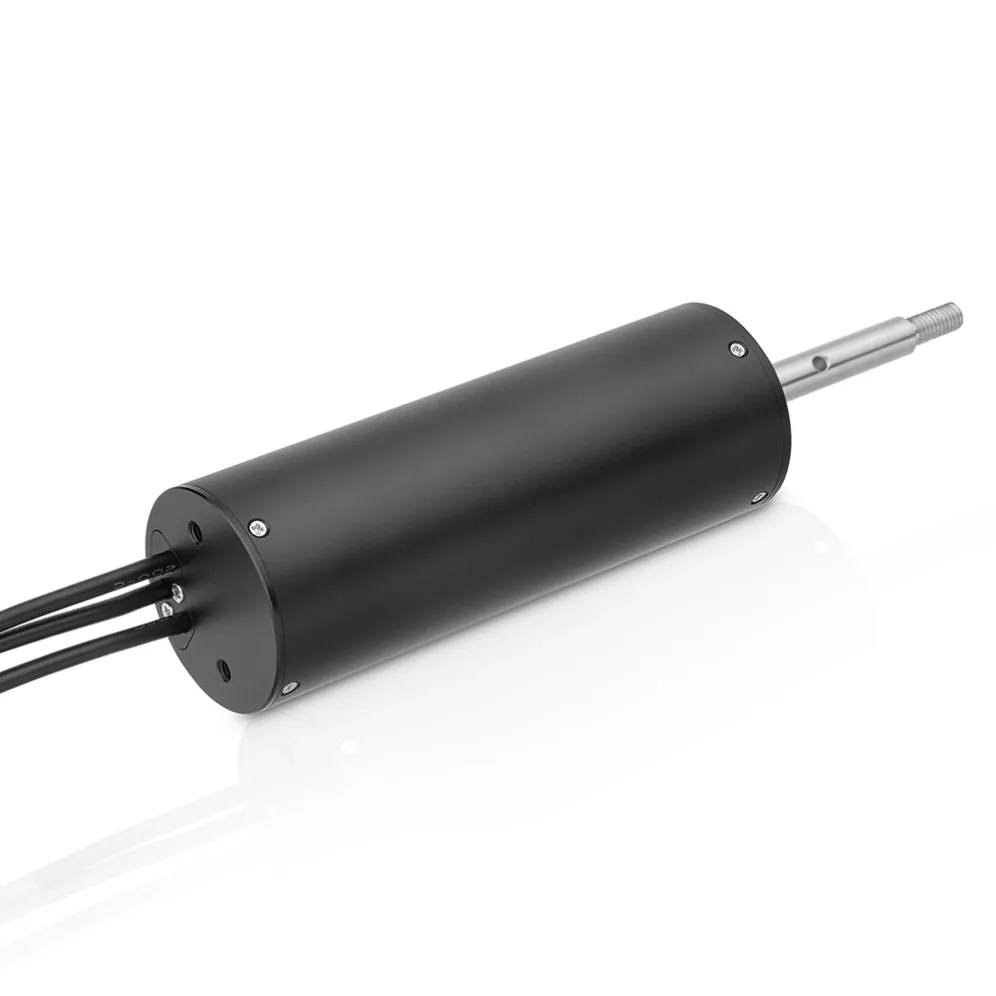

HG-Marine Series
Long-Life Brushless Motors for Unmanned Vessels41115
A high-efficiency, energy-saving brushless dc motor designed for survey vessels and unmanned vessels.
Specifications
- Rotational Speed
- 5500-7800rpm
- Power
- 1050W
- Voltage
- 24v-36vdc
This motor has an IP68 waterproof rating, is very compact, and can be installed in tight spaces. Despite weighing only 700 grams, it delivers more than 1 kilowatt of power.

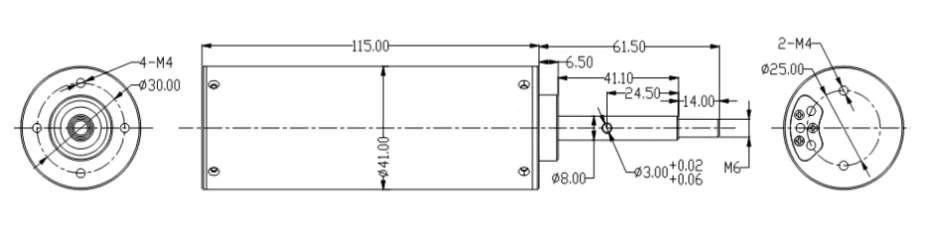

外尺寸（mm) | RPM/voltage | 最大电压(DC) | 电流(A) | 最大电流(A) | 功率(W) | 最大功率(W) | 转速(RPM) | 扭距(N.M) | 最大扭距(N.M) | 极数 | 绝缘等级 | 防水等级 | 重量(g) |
Φ41*115 | 185KV | 20V-43V | 25A | 43A | 1050（W） | 1800（W） | 8000RPM | 1.35(N.M) | 2.5(N.M) | 6级 | F级 | IP68 | 700g |
215KV | 20V-36V | 29A | 51A | ||||||||||
260KV | 20V-30V | 35A | 61A | ||||||||||
325KV | 20V-24V | 44A | 76A |
